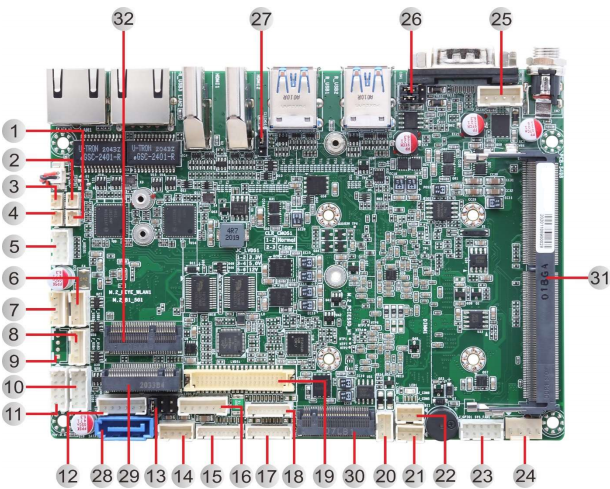

  • QHW-6582H
    Intel Core i7-8565U處理器, 6*COM, 最多12*USB, 2*LAN, 3*M.2, 2*HDMI, 1*LVDS/eDP, 3.5寸
#

產(chǎn)品簡(jiǎn)介
  • 采用Intel Whiskey Lake Core i7-8565U處理器
  • 2*Intel千兆網(wǎng)口, 6*COM, 最多12*USB
  • 2*HDMI, 1*LVDS/eDP, 支持三顯
  • 3*M.2支持SATA, Wifi/BT, 4G/5G
  • 3.5寸, DC 12V供電

規(guī)格
General
CPU

Intel? 8th CoreTM i7-8565U, Quad-core, up to 4.6 GHz, TDP 15W

CPU can be customized into 8th CoreTM i3/i5/i7 or Celeron? 4205U
Memory
 		DDR4-2400, 1*SO-DIMM, up to 16 GB
Storage

1*SATA 3.0

1*M.2 (Key-M, 2242/2280, PCIe x4/ SATA SSD)
Expansion Interface

1*M.2 (Key-E, 2230, Wifi+BT)

1*M.2 (Key-B, 3042-4G, 3052-5G)
BIOS
 		AMI UEFI BIOS
System
 		Windows 10, Linux
I/O Interface
Ethernet
 		2* Intel? 1Gbps PCIe Ethernet Controller, RJ45
Serial
 		4*RS232, 2*RS232/RS485
USB
 4*USB 3.0, up to 8*USB 2.0
Audio
 		Realtek? 5.1 channel HDA Codec, with MIC/Line-out
GPIO
 		8*Programmable GPIO
Other 1*SIM header
Display
Display Interface

2*HDMI: max resolution up to 4096*2160@30Hz

1*LVDS/eDP: LVDS, Dual Channel 24 bit, max resolution up to 1920*1200@60Hz

                      eDP, max resolution up to 3840x2160@60Hz
Multiple Display
 		Triple
Mechanical & Environment
Dimension
 		146*105mm
Power Input
 		DC 12V
Temperature Operation: -20℃~60℃, Storage: -25℃~75℃
Relative Humidity
 		Operation: 10%~90%, Storage: 5%~95%, non-condensing
