  • QHW-Q6781
    Intel 13代Core i3/i5/i7/i9處理器, Q670芯片, 2*PCIe x16, 4*PCIe x4, 1*PCI
#





產品簡介
  • 支持Intel 13代Core i3/i5/i7/i9處理器
  • 采用Intel Q670芯片組
  • 2*Intel千兆網口, 8*USB 3.0, 5*USB 2.0, 6*COM
  • 1*VGA, 1*HDMI, 1*DVI, 1*eDP
  • 2*PCIe x16, 4*PCIe x4, 1*PCI
  • 支持vPro, AMT, RAID, TPM 2.0, Case Open

規格
General
CPU
 		Intel? 13th Generation CoreTM i3/i5/i7/i9, Pentium?, Celeron? CPU, LGA1700
Chipset
 		Intel? Q670 Chipset, TDP 6W
Memory

DDR4-3200,4*U-DIMM, up to 128GB

Storage

4*SATA 3.0

1*M.2 (Key-M, 2242/2280, PCIe x4 Gen4 NVMe/ SATA SSD)

Expansion Interface

2*PCIe x16 Slot (1*PCIe x16 Gen4 or 2*PCIe x8 Gen4)

3*PCIe x4 Slot (PCIe x4 Gen4)

1*PCIe x4 Slot (PCIe x4 Gen3)

1*M.2 (Key-E, 2230, PCIe+USB 2.0+CNVi, Wifi+BT)

1*PCI

BIOS
 		AMI UEFI BIOS
System
 		Windows 10/11, Linux
TPM
 		TPM2.0, Optional

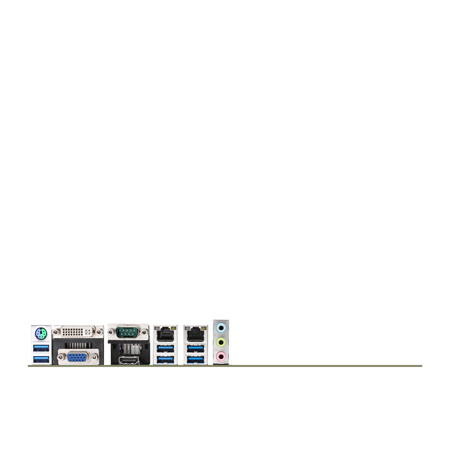

I/O Interface
Ethernet

1*Intel? i225-V 2.5GbE Ethernet Controller, RJ45

1*Intel? i219-V GbE Ethernet PHY, RJ45

Serial
 		4*RS232, 1*RS232/RS485/RS422, 1*RS232/RS485
USB

8*USB 3.0, 5*USB 2.0

Audio
 		Realtek? Audio HDA Codec, with MIC/Line-out/Line-in
PS/2
 		1*PS/2 Port (Keyboard & Mouse)
GPIO
 		8*Programmable GPIO
Others
 		1*Case Open Header
Display
Display Interface

1*DVI-D: max resolution up to 1920*1200@60Hz

1*HDMI 1.4b: max resolution up to 4096*2160@30Hz

1*VGA: max resolution up to 1920*1200@60Hz

1*eDP: max resolution up to 4096*2304@60Hz
Multiple Display
 		Triple
Mechanical & Environment
Dimension
 		305*244mm
Power Input
 		ATX PSU
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
 		Operation: 10%~90%, Storage: 5%~95%, non-condensing
