  • QHW-Q4752A
    Intel 10/11代Core i3/i5/i7/i9處理器, Q470芯片, 2*PCIe x16, 3*PCIe x4, 2*PCI
#




產品簡介
  • 支持Intel 10/11代Core i3/i5/i7/i9處理器
  • 采用Intel Q470芯片組

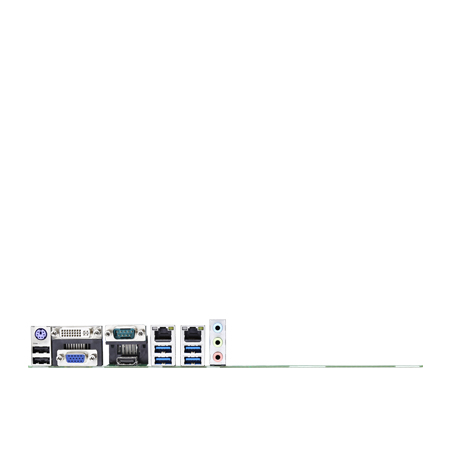

  • 2*Intel千兆網口, 6*USB 3.0, 7*USB 2.0, 6*COM
  • 1*VGA, 1*HDMI, 1*DVI, 1*eDP, 支持三屏異顯
  • 2*PCIe x16, 3*PCIe x4, 2*PCI
  • 支持vPro, AMT, RAID, TPM 2.0, Case Open

規格
General
CPU
 		Intel? 10/11th Generation CoreTM i3/i5/i7/i9, Pentium?, Celeron? CPU, LGA1200
Chipset
 		Intel? Q470 Chipset, TDP 6W
Memory
 		DDR4-2400/2666/2933, 4*U-DIMM, up to 128 GB
Storage

4*SATA 3.0

1*M.2 (Key-M, 2242/2280, PCIe x4/ SATA SSD)

Expansion Interface

2*PCIe x16 Slot (1*PCIe x16 Gen3 or 2*PCIe x8 Gen3)

3*PCIe x4 Slot (PCIe x4 Gen3)

2*PCI, 1*Mini-PCIe (Wifi+4G)

BIOS
 		AMI UEFI BIOS
System
 		Windows 10/11, Linux
TPM
 		SLB 9670VQ2.0, TPM2.0, Support Intel PTT
I/O Interface
Ethernet
 		2*Intel? 1Gbps PCIe Ethernet Controller, RJ45
Serial
 		4*RS232, 1*RS232/RS485/RS422, 1*RS232/RS485
USB
 		6*USB 3.0, 7*USB 2.0
Audio
 		Realtek? ALC662 5.1 channel HDA Codec, with MIC/Line-out/Line-in
PS/2
 		1*PS/2 Port (Keyboard & Mouse)
GPIO
 		8*Programmable GPIO
Others 1*Case Open Header
Display
Display Interface

1*DVI-D: max resolution up to 1920*1200@60Hz

1*HDMI 1.4b: max resolution up to 4096*2160@30Hz

1*VGA: max resolution up to 1920*1200@60Hz

1*eDP: max resolution up to 4096*2304@60Hz
Multiple Display
 		Triple
Mechanical & Environment
Dimension
 		305*244mm
Power Input
 		ATX PSU
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
 		Operation: 10%~90%, Storage: 5%~95%, non-condensing
