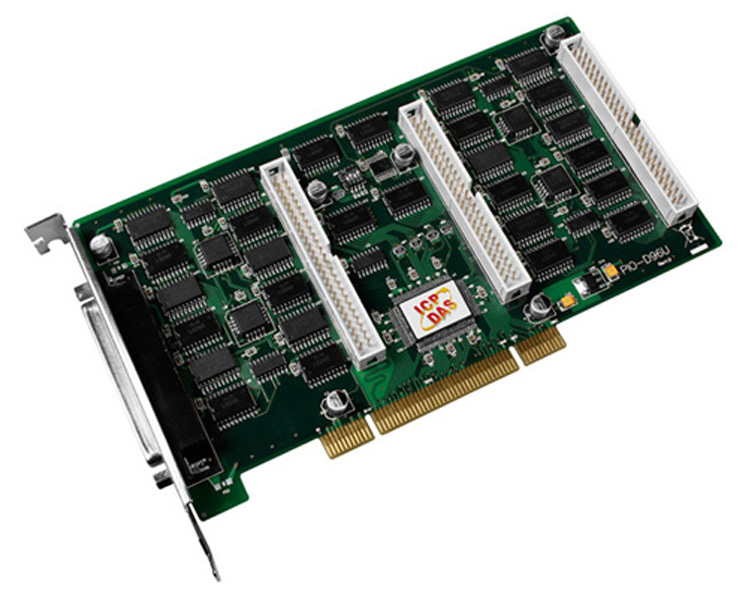

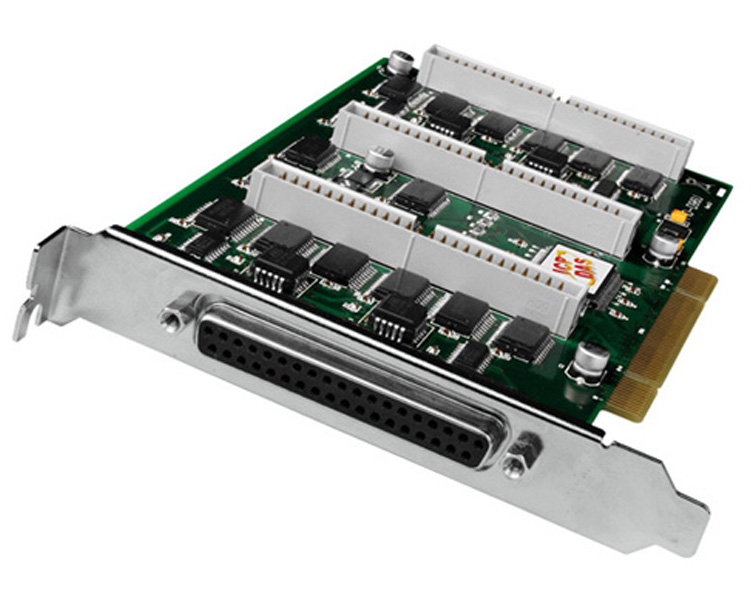

  • PIO-D96U
    96路數字量輸入輸出卡
#




產品簡介
  • Support the +5V PCI bus for PIO-D96
  • Support the +3.3/+5 V PCI bus for PIO-D96U
  • 96 channels of digital I/O
  • Bi-direction programmable I/O ports under software control
  • All I/O lines buffered on the board
  • Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R,
  • DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards
  • One DB37 connector, three 50-pin box headers
  • Interrupt source: 4-channel
  • Card ID function for PIO-D96U
  • Buffer output for higher driving capability
  • DIO response time is about 0.77 μs (1.3 MHz max.)

規格

Programmable Digital I/O

Channels

96

Digital Inputs

Compatibility

5 V/TTL

Input Voltage

Logic 0: 0.8 V max. Logic 1: 2.0 V min.

Response Speed

1.2 MHz (Typical)

Digital Outputs

Compatibility

5 V/TTL

Output Voltage

Logic 0: 0.4 V max. Logic 1: 2.4 V min.

Output Capability

Sink: 64 mA @ 0.8 V Source: 32 mA @ 2.0 V

Response Speed

1.2 MHz (Typical)

General

Bus Type

3.3 V/5 V Universal PCI, 32-bit, 33 MHz

Data Bus

8-bit

Card ID

Yes(4-bit)

I/O Connector

Female DB37 x 1 50-pin box header x 3

Dimensions (L x W x D)

180 mm x 105 mm x 22mm

Power Consumption

600 mA @ +5 V

Operating Temperature

0 ~ 60 °C

Storage Temperature

-20 ~ 70 °C

Humidity

5 ~ 85% RH, non-condensing
