  • QHW-H422A
    Intel 10代Core i3/i5/i7/i9處理器, H420E芯片, 10*COM, 12*USB, 2*LAN, 1*PCIe x16, 2*M.2
#




產(chǎn)品簡介
  • 支持Intel 10代Core i3/i5/i7/i9處理器
  • 采用Intel H420E芯片組
  • 6*USB 3.0, 6*USB 2.0, 10*COM, 2*千兆網(wǎng)口
  • 1*VGA, 1*HDMI, 支持雙屏異顯
  • 1*PCIe x16, 2*M.2支持Wifi/BT/SSD/4G/5G

規(guī)格
General
CPU
 		Intel? 10th Generation Core? i3/i5/i7/i9, Pentium?, Celeron? CPU, LGA1200
Chipset
 		Intel? H420E, TDP 6W
Memory
 		DDR4-2133/24002666/2933, 2*U-DIMM, up to 32 GB
Storage
 		1*SATA 3.0
Expansion Interface

1*PCIe x16

1*M.2 (key-E, 2230, PCIe+USB 2.0, Wifi+BT)

1*M.2 (key-M, 2242/3052, PCIe x2+SATA+USB 2.0)

BIOS
 		AMI UEFI BIOS
System
 		Windows 10/11, Linux
Technology
 		TPM 2.0, KPMU 2.0

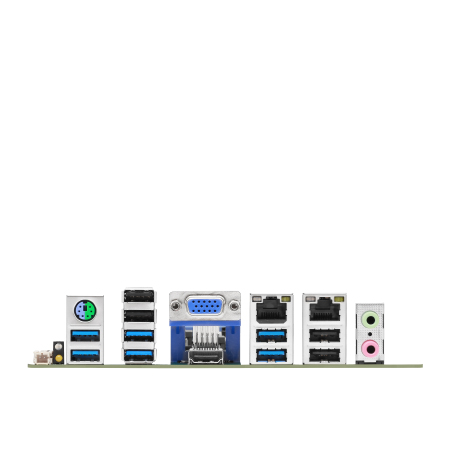

I/O Interface
Ethernet
 		2*Realtek? 1Gbps PCIe Ethernet Controller, RJ45
Serial
 		10*RS232
USB
 		6*USB 3.0, 6*USB 2.0
Audio
 		Realtek? 5.1 channel HDA Codec, with MIC/Line-out/Line-in
PS/2
 		1*PS/2 Port (Keyboard & Mouse)
GPIO
 		8*Programmable GPIO
Display
Display Interface

1*VGA: max resolution up to 1920*1080@60Hz

1*HDMI: max resolution up to 4096*2160@30Hz
Multiple Display
 		Dual
Mechanical & Environment
Dimension
 		170*170mm
Power Input
 		ATX PSU
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
 		Operation: 10%~90%, Storage: 5%~95%, non-condensing
