  • QHW-C24262
    Intel 8/9代Core i3/i5/i7處理器, H310/C246芯片, 2*SFP, 6*LAN, 2組三代Bypass, 3*M.2, PCIe x8/x16, TPM
#






產(chǎn)品簡介
  • 支持Intel 8/9代Core i3/i5/i7處理器
  • 可選Intel C246/H310芯片
  • 6*千兆電口, 2*千兆光口, 2組三代Bypass
  • 提供可選的PCIe x8和PCIe x16插槽
  • 3*M.2支持SATA, Wifi, 4G/5G
  • 1*HDMI, 1*VGA

規(guī)格
General
CPU

Intel? 8/9th Generation Core? i3/i5/i7, Pentium?, Celeron? CPU, LGA1151

Chipset

Intel? C246/H310, TDP 6W

Memory

DDR4-2666, 4*U-DIMM, up to 64 GB

Support ECC with C246 chipset

TPM

TPM 2.0 Onboard (optional)

Storage

1*M.2 (Key-M, 2242/2280, SATA SSD)

2*SATA 3.0, 1*CF Card

Expansion Interface

1*M.2 (Key-E, 2230, Wifi, only for C246)

1*M.2 (Key-B, 3042-4G, 3052-5G)

· 1*PCIe x8 Slot

PCH PCIe x4, only for C246

Support one of the following 2 PCIe Side Plug Slot

· 1*PCIe x16 Side Plug Slot

  CPU PCIe x8, PCH PCIe x4, 15*GPIO

· 1*PCIe x8 Side Plug Slot

  CPU PCIe x4

BIOS

AMI UEFI BIOS

System

Windows 10, Linux

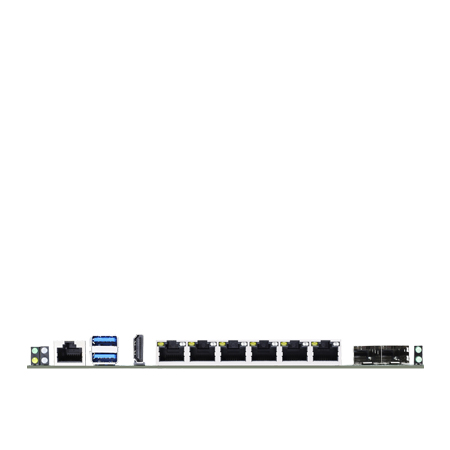

I/O Interface
Ethernet

6*Intel? 1Gbps Ethernet Controller, RJ45

Support 2*Gen3 Lan Bypass

2*Intel? 1Gbps Ethernet Controller, SFP

2*SFP and PCIe x16 can not be supported at the same time when the chipset is H310

Serial

2*RS232

USB

2*USB 3.0, 2*USB 2.0

PS/2

1*PS/2 Header (Keyboard & Mouse)

GPIO

8 programmable GPIO

Display
Display Interface

1*HDMI: max resolution up to 4096*2160@24Hz

1*VGA: max resolution up to 1920*1200@60Hz

Mechanical & Environment
Dimension

288*207mm

Power Input

ATX PSU

Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
 		Operation: 10%~90%, Storage: 5%~95%, non-condensing
