  • QHW-72026-BH
    Intel Core i5-7200U處理器, 6*COM, 8*USB, 2*LAN, 2*Mini-PCIe, 3.5寸
#





產品簡介

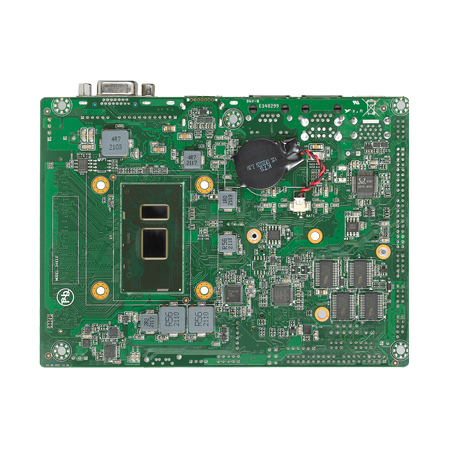

  • 采用Intel Kaby Lake-U Core i5-7200U處理器
  • 背置CPU, 更適用于無風扇整體散熱設計
  • 6*COM, 8*USB, 2*Intel千兆網口
  • 1*VGA, 1*HDMI, 1*LVDS/eDP, 支持三屏異顯
  • 2*Mini-PCIe支持mSATA和Wifi/3G/4G
  • 3.5寸, DC 9-28V供電

規格
General
CPU

Intel? Kabylake-U CoreTM i5-7200U CPU, Dual-core, up to 3.10 GHz, TDP 15W

CPU can be customized into Intel? 6th/7th CoreTM i3/i5/i7

or Celeron? 3855U/ 3955U

Memory
 		DDR4-2133, 1*SO-DIMM, up to 8 GB
Storage
 		1*SATA 3.0, 1*mSATA
Expansion Interface

2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported),

up to 3*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G, 1*Wifi supported) with SV-M7-C
BIOS
 		AMI UEFI BIOS
System
 		Windows 7/8.1/10, Linux

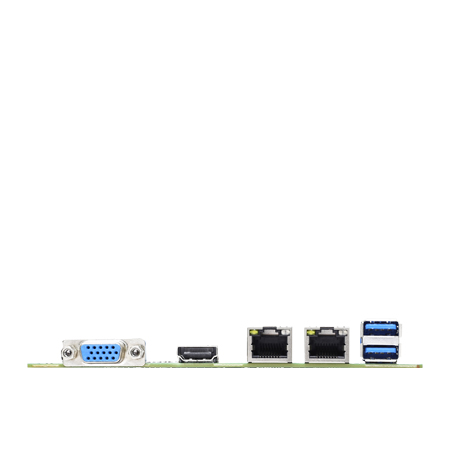

I/O Interface
Ethernet

2*Intel? 1Gbps PCIe Ethernet Controller, RJ45

up to 4*Intel? 1Gbps PCIe Ethernet Controller with SV-M7-L
Serial
 		5*RS232, 1*RS232/RS485
USB

2*USB 3.0, 6*USB 2.0

Audio
 		Realtek? ALC662 5.1 channel HDA Codec, with MIC/Line-out
PS/2
 		1*PS/2 Header (Keyboard & Mouse)
GPIO
 		8*Programmable GPIO
Feature Interface
 		1*SVIO Header (connects SV-M6 or SV-M7 module, provides LAN/COM/USB/PCI)
Display
Display Interface

1*VGA: max resolution up to 1920*1080@60Hz
1*HDMI: max resolution up to 4096*2160@30Hz
1*LVDS/eDP: LVDS, Dual channel 24 bit, max resolution up to 1920*1200@60Hz
                      eDP, max resolution up to 2880*1800@60Hz

Multiple Display
 		Triple
Mechanical & Environment
Dimension
 		146*105mm
Power Input
 		DC 9-28V
Temperature Operation: 0℃~60℃, Storage: -20℃~75℃
Relative Humidity
 		Operation: 10%~90%, Storage: 5%~95%, non-condensing
