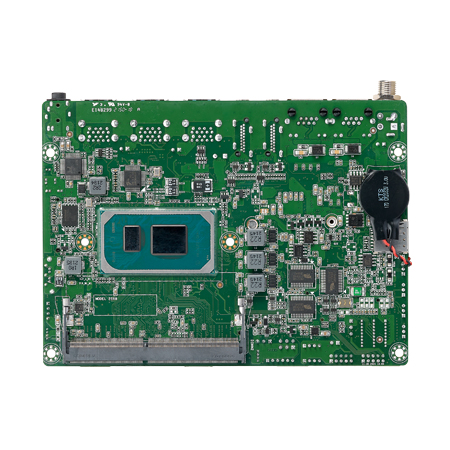

  • QH3b-13526
    第11代Intel Core或Celeron處理器 (Tiger Lake), 6*USB 3.0, 2*LAN, 6*COM, 3*M.2, 2*HDMI, 3.5寸
#





產品簡介
  • 采用第11代Intel Core或Celeron處理器 (Tiger Lake)

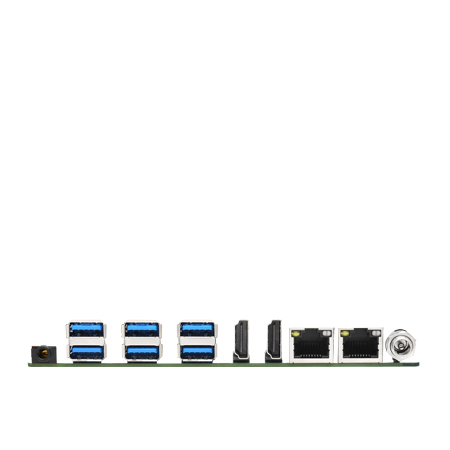

  • 提供2*Intel千兆網口, 6*USB 3.0, 6*COM, 2*HDMI等豐富IO
  • 提供3*M.2, 支持SSD, WiFi+BT, 4G/5G等模塊
  • 2*HDMI, 1*LVDS/eDP, 支持三屏異顯
  • 3.5寸, 背置處理器, DC 12V供電

規格
General
CPU

Intel? 11th CoreTM i7-1165G7, i5-1135G7, i3-1115G4

15W default, 12W/28W BIOS optional

or Celeron? 6305E CPU, 15W

Memory
 		DDR4-3200, 2*SO-DIMM, up to 64 GB
Storage

1*SATA 3.0

1*M.2 (Key-M, 2280, PCIe x4 NVMe/ SATA, SSD)
Expansion Interface

1*M.2 (Key-E, 2230, PCIe+USB, Wifi+BT)

1*M.2 (Key-B, 3052, PCIe/ USB 3.0+USB2.0, 4G/5G)
BIOS
 		AMI UEFI BIOS
System
 		Windows 10, Linux
I/O Interface
Ethernet
 		2*Intel? 1Gbps PCIe Ethernet Controller, RJ45
Serial
 		3*RS232, 2*RS232/ TTL, 1*RS232/ RS485/ TTL
USB
 		6*USB 3.0, 4*USB 2.0
Audio
 		Realtek? 5.1 channel HDA Codec, with MIC/Line-out and Amplifier
GPIO
 		8*Programmable GPIO
Display
Display Interface

2*HDMI: max resolution up to 4096*2160@30Hz

1*LVDS/eDP: LVDS, Dual Channel 24 bit, max resolution up to 1920*1200@60Hz

                      eDP, max resolution up to 3840x2160@60Hz
Multiple Display
 		Triple
Mechanical & Environment
Dimension
 		146*105mm
Power Input
 		DC 12V
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
 		Operation: 10%~90%, Storage: 5%~95%, non-condensing
