  • NS-205-IP67

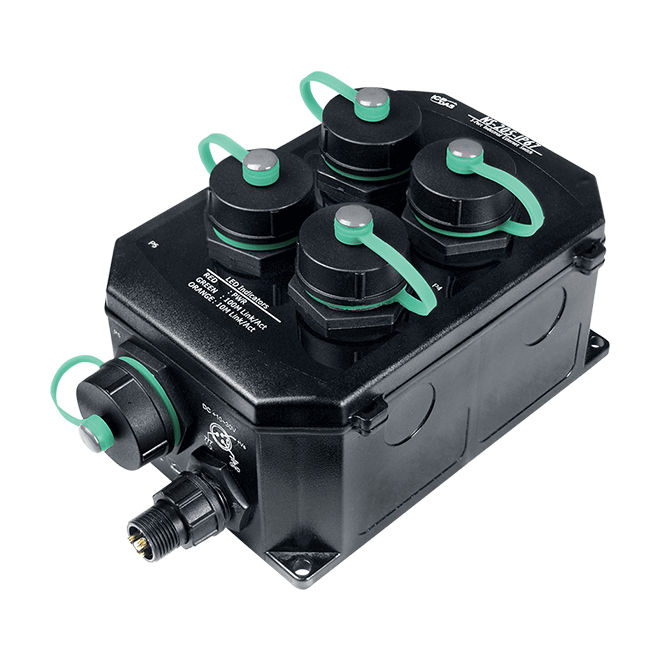

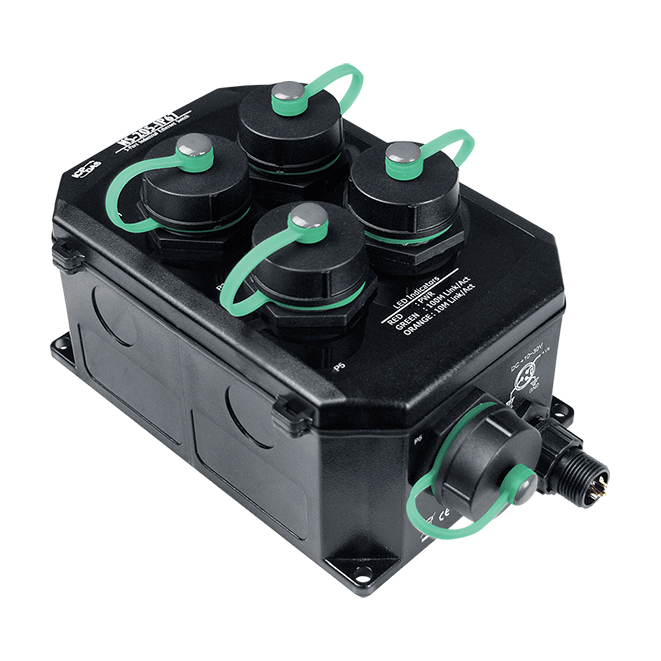

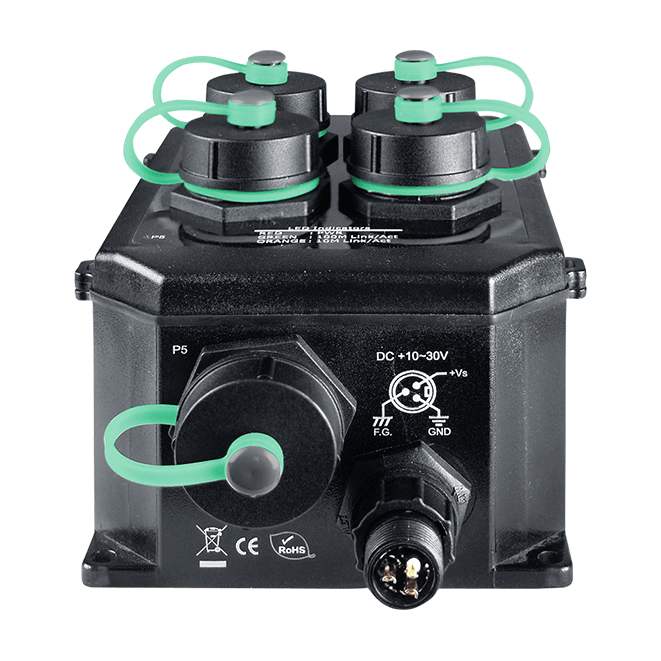

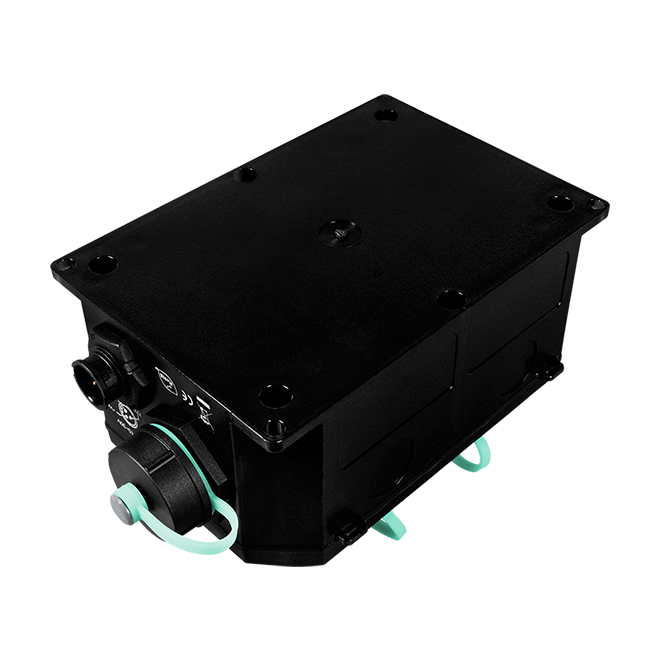

    Industrial 5-port unmanaged IP67 Ethernet switch
#




產品簡介
  • Automatic MDI/MDI-X crossover for plug-and-play
  • Store-and-forward architecture
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • Rugged RJ45 Connector for anti-vibration and shock
  • IP67 grade protection approval

規格
LED 燈
狀態 PWR, 10/100M, Link/Act
乙太網絡
Ports 5 x RJ-45, 10/100Base-TX
標準 IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
處理型式 Store & forward; wire speed switching
MAC 長度 1024
記憶體頻寬 1.4 Gbps
幀緩沖存儲器 256 Kbit
流量控制 IEEE 802.3x fl ow control, back pressure flow control
隔離 1500 Vrms 1 minute
電源
反極性保護 Yes
輸入范圍 +10 ~ +30 VDC (1 kV Isolated)
功耗 0.12 A @ 24 VDC
機構
外殼 Plastic
尺寸 (mm) 85 x 137 x 76 (W x L x H)
安裝 Wall mounting
防水防塵等級 IP67 for Operating Temperature -10 °C ~ +60 °C
IP66 for Operating Temperature -40 °C ~ +75 °C
環境
工作溫度 -10 °C ~ +60 °C (Protection rating IP67)
-40 °C ~ +75 °C (Protection rating IP66)
儲存溫度 -10 °C ~ +60 °C (Protection rating IP67)
-40 °C ~ +75 °C (Protection rating IP66)
濕度 100% RH for Operating Temperature -10 °C ~ +60 °C
10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C
